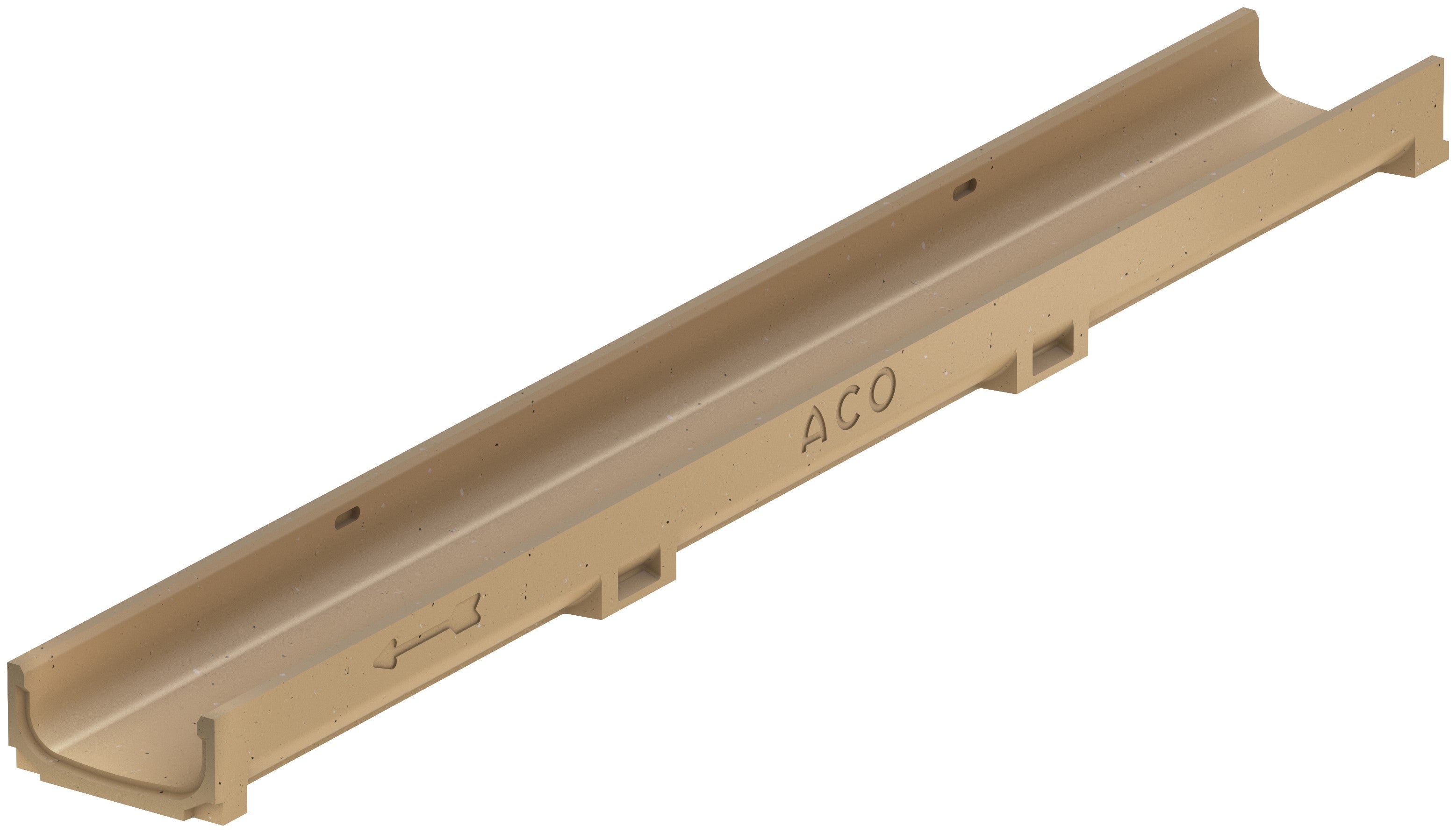

ACO Euroline gutter, L=1000mm, H60 without grating

This ACO Euroline drainage channel is suitable for collecting and discharging rainwater.
The gutter can be used with minimal installation depth. The ACO Euroline linear drainage system can be used around the house or in areas with low traffic.

This channel is supplied without a grating; various gratings are available in our range.

Advantages of linear drainage

• No puddles forming on lawns, borders, patios or driveways.
• Less pollution and maintenance.
• Can be combined with infiltration.
• Shallow connection option due to the side outlet.

Application of the ACO Euroline channel drains

• At the patio or driveway.
• In combination with both small and large format paving.
• As a separation between patio and lawn or borders.
• In combination with infiltration systems.

In addition to this line gutter, the Euroline range includes various accessories such as:

• end pieces,
• sludge traps,
• stench locks,
• slot grates.

Material

The linear channel, also known as a drainage channel, is made of polymer concrete. Polymer concrete is a composite of the natural mineral quartz and reactive resins. The channel is chemical-resistant and has a long lifespan.

Tax class

This gutter system is suitable for a load class of B-125 kN and is often used for pedestrian and cycle paths and parking areas for private vehicles. This also depends on the grating installed on this gutter.

Assembly

The gutter can be connected to a sewer drain, a ditch, or an infiltration system. For lines longer than 5 meters, it is recommended to install at least one additional outlet. The selected grating can be attached without screws and is therefore easy to remove for cleaning or inspection.
