DAB Pumping station PE 1014 Water pump unit (waste water/rain)

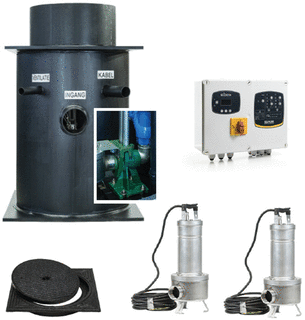

DAB Pumping station PE1014 Complete – Underground water pump unit for dirty and rainwater | 850 litres | IP68 | 2 pumps | stainless steel 304

The DAB Pumping Station PE1014 Complete is a powerful and fully pre-assembled underground water pump unit that is specially designed for the discharge of dirty water, rainwater and waste water containing faeces . This version belongs to the robust and reliable PE series from DAB and offers a sustainable total solution for residential, commercial and industrial outdoor applications.

The pumping station has a large storage capacity of 850 litres and is made of high-quality PE-100 plastic , resistant to chemical influences and long-term underground loads. The dimensions of the reservoir are 1000 mm wide , 1000 mm deep and 1400 mm high , which ensures sufficient buffer capacity in the event of peak discharge or heavy rainfall. The PE1014 is equipped with 2 powerful wastewater pumps , which are suitable for solids up to 50 mm - perfect for use in domestic and light-industrial wastewater flows.

The pump housing is made of stainless steel RVS 304 (1.4301) , which guarantees a long service life and maximum resistance to corrosion. The pump sump is equipped with a pipe end connection on the inlet side and a DN 50 pressure connection with an external pipe diameter of 63 mm . Both the flange shape and the pressure stage class for the pressure and inlet side fall under the category "other", which makes this unit widely applicable within various installations.

This version includes an alarm function with alarm output , a non-return valve and an integrated vent . This prevents odour nuisance, backflow and overpressure. The pump has an IP68 protection degree , which means that both the pump and the electronics are completely waterproof and suitable for long-term submersion.

Electrically, the unit is designed for a 2-phase connection with a frequency of 50 Hz . The pumps are connected via a cord with plug , which considerably speeds up installation. The motor power input (P1) is 1,110,000 W , and the output power (P2) per pump is 750,000 W. The pump falls under insulation class F according to IEC standards , and the nominal current is 5.13 A.

The maximum delivery head of this pump unit is 9.6 metres , and although the system in this configuration is specified with a volume flow (BEP) of 0 m³/h and pressure at BEP of 0 kPa , it is suitable for customisation and can easily be adjusted to specific situations. This pump pit is suitable for outdoor installation , but not intended for placement directly behind a toilet bowl .

Although the PE1014 does not include communication interfaces or smart protocols such as Modbus or CANopen, the reliability of the system and the robustness of the components offer a perfect solution for installers looking for a durable and low-maintenance pumping station.

Applications:

• Waste water drainage for homes, offices and businesses

• Rainwater harvesting and reuse

• Garden and terrain drainage

• Wastewater treatment including faeces

• Underground buffer facilities for flood prevention

The DAB Pumping Station PE1014 Complete is a powerful, efficient and sustainable solution for the automatic processing of wastewater and rainwater. Thanks to its smart design, high-quality materials and dual pump technology, this unit is extremely suitable for situations where operational reliability and flow are crucial. With DAB, you bring quality into your home – prepared for the future.
