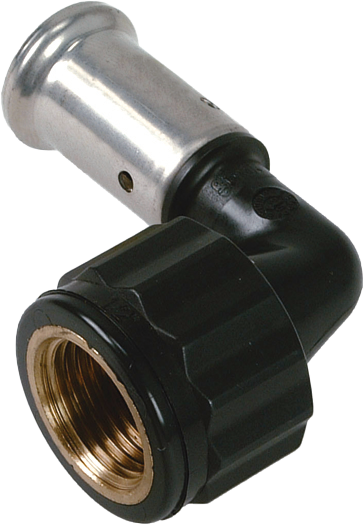

Elbow 90° internal thread 40x5/4"

This Henco 90° elbow screw is used in drinking water, cooling, compressed air, sanitary and heating installations.

In addition to this 90° elbow screw, the Henco range includes various accessories, such as:

• Supply pipes.
• Links.
• Wall plates.
• Tools.

Properties

The Henco 90° elbow screw offers excellent strength, flexibility, and hardness, combined with high wear resistance, corrosion resistance, and leak detection, ensuring a durable and reliable connection. Moreover, the reducing coupling is lightweight, making installation easier.

Material

• Housing: PVDF (polyvinylidene fluoride).
• Press sleeve: stainless steel.
• Internal thread: brass.

Assembly

To press the 90° elbow screw, use the Henco tool. The coupling is equipped with inspection windows and leak detection. The fitting can be poured in place without protection.

Pressing takes just a few steps:

• Use pipe cutters to straighten the pipe to size and deburr the ends to prevent a noisy pipe.
• Slide the tube into the press fitting until it is visible in the viewing window.
• Place the fitting with pipe in the press jaw and start the pressing process.

After installing the Henco system, a pressure test must be performed.

Want to buy the Henco system or need more information?

The desired 90° elbow screw can be ordered quickly and easily through our website or purchased at one of our locations. Still not sure which coupling is best for your situation? Contact one of our specialists for free advice.
