PE100 LU El.Weld T-piece 160 SDR11

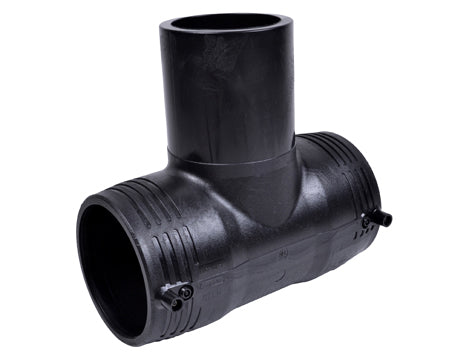

This Wavin Monoline electrofusion T-piece 90° is used in water and gas systems to make a connection between 3 PE pipes or pressure fittings.

In addition to the electrofusion T-piece 90°, the electrofusion coupling range includes various fittings, such as:

• Tools.
• Links.
• Welding machines.
• Gaskets.
• Transitions.

Properties

This Monoline 90° T-piece has a maximum operating temperature of 20°C with a working pressure of 16 bar for water systems. For gas systems, the maximum operating temperature is 20°C with a working pressure of 10 bar.

Quality mark

This Wavin 90° T-piece has Kiwa and Gastec QA certification. This makes the electrofusion fitting suitable for drinking water and gas.

Assembly

This 90° T-piece connects three pipes or fittings. To weld a PE pressure pipe to a welded coupling, you'll need a PE cleaner, a peeling device, clamps, and a welding machine. Electrofusion heats the spiral in the electrofusion fitting, fusing the two components together. This creates a strong, tensile-resistant, gas- and watertight connection. Butt welding can also be used.

The welding process

• Place the T-piece 90° on the pipe and mark the spot with a marker.
• Remove the T-piece 90° from the pipe, use the peeling device and remove the burrs.
• Clean the area with PE cleaner and, if necessary, re-indicate the length.
• Reposition the T-piece 90° around the pipe and tighten the screws.
• Connect the welding machine, scan the barcode and start the welding process.
• Check the indicator pins, they should have come out all the way.
• Disconnect and remove the welding cables and fixation clamps after the specified cooling time.
• Wait at least 2 hours before pressurizing the piping system.

Want to buy electrofusion couplings or need more information?

The desired 90° electrofusion tee can be ordered quickly and easily through our website or purchased at one of our locations. Still not sure which electrofusion sleeve is best for your situation? Contact one of our product specialists for free advice.
