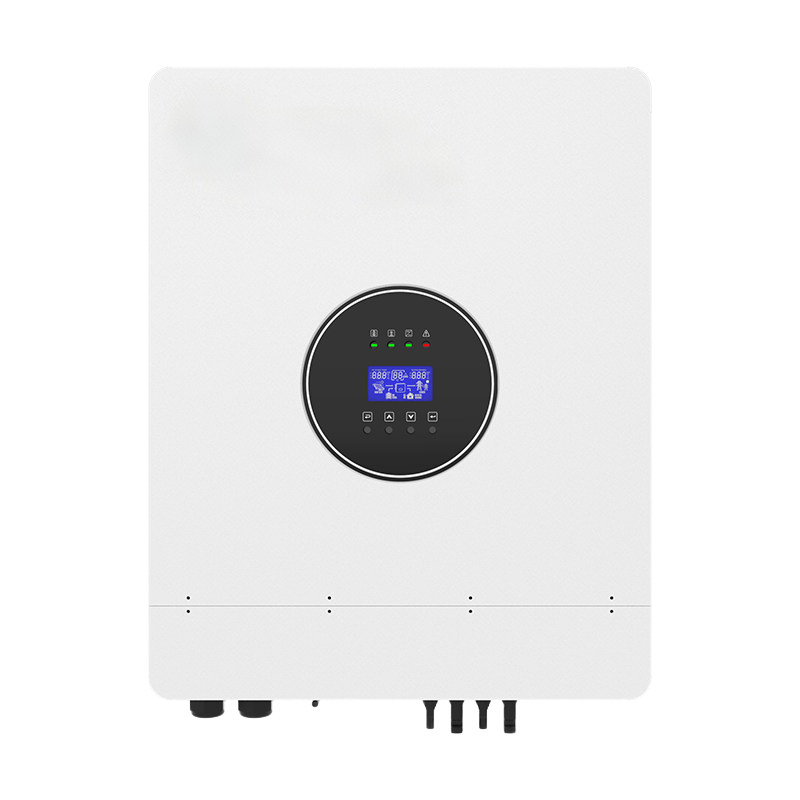

8kW Off-grid Hybrid Inverter 48V 1-phase

Technical Specifications – 8kW Hybrid Inverter

Line-Mode Specifications

• Nominal Output Power (VA): 8000VA

• Rated Output Power (W): 8000W

• Nominal DC input voltage: 48V

• Nominal AC input voltage: 230Vac

• Max. AC input voltage: 280Vac

• Nominal input frequency: 50/60Hz (automatic detection)

• Efficiency (line mode): >95% (at nominal load, battery fully charged)

• Battery-free passage: Yes

Mains Charging Mode Specifications

• Input voltage range: 90–280Vac

• Overload protection: Yes

• Max. charging current: 150A

Solar charging & Grid charging

• Max. PV open circuit voltage: 500V

• PV operating voltage range: 90V – 450V

• Max. PV input power: 10,000W (5000W per MPPT)

• Max. solar charging current: 150A

• Max. combined charging current (PV + grid): 150A

• Max. PV input current: 20A × 2 (max. 40A)

• Min. start-up voltage: 100V

• Number of MPPTs / Strings per MPPT: 2 / 1

Inverter Mode Specifications

• Output waveform: Pure sine wave

• Nominal output voltage: 230Vac ± 5%

• Nominal output frequency: 50 ±0.3Hz / 60 ±0.3Hz (adjustable)

• Parallel capability: Yes, up to 6 units

• Peak efficiency: 94.5%

• Overload protection (SMPS load):

  • 5 sec @ ≥150% load

  • 10 sec @ 105–150% load

• Peak power: 2× nominal for 5 seconds

• Starting of electrical appliances: Yes

• Output short circuit protection: Yes

General Specifications

• Working temperature range: −10°C ~ +50°C

• Storage temperature: −15°C ~ +60°C

• Net weight: 23.7 kg

• Gross weight: 27.4 kg

• Product dimensions: 607 × 406 × 141 mm

• Package dimensions: 712 × 582 × 259 mm

Certifications

• CE-EMC

• IEC62109-1/2

• IEC63027

• See warranty conditions for applicable provisions
