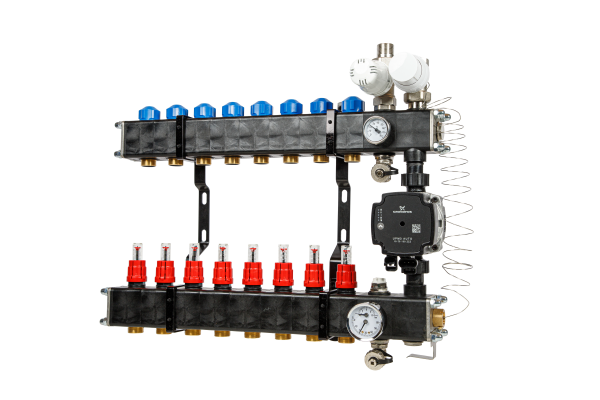

VTE composite distributor for Grundfos UPM3 PN10 8-group district heating pump

The VTE composite district heating manifolds are modular and available with either a Wilo or Grundfos pump. This manifold is fully assembled and suitable for both primary and secondary heating. It is pressure-tested to 6 bar and manufactured from high-quality fiberglass-reinforced black polyamide composite. It is available in sizes from 2 to 12 circuits. The primary connections (flow and return) are located on the top right side as standard. The manifolds can also be connected on the left or bottom side. The manifold is equipped as standard with a built-in non-return valve, RTL valve, motorizable thermostatic valves (M30x1.5), and adjustable flow meters.

Technical specifications:

• Thermo-manometer in the bottom beam
• Thermometer in the top bar
• 4-sided primary connection possible
• Equipped with Grundfos UPM3 Auto as standard
• Built-in check valve
• Filling and drain tap
• Adjustable flow meters Taconova 0 to 300 l/h on supply
• Motorizable valve M30x1.5 per group in return
• Available with pre-adjustable Dynamic flow valves
• Double-walled insulating modules
• No condensation
• 10-year warranty on manufacturing defects
• Center distance groups 50mm
• Prepared for zoning
• RTL valve for return temperature setting.
