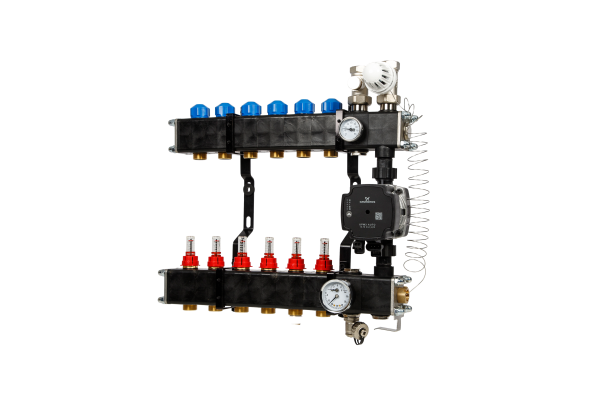

VTE composite underfloor heating manifold pump Grundfos UPM3 6-group

The VTE composite manifolds are modular and available as both open headers and with pumps. This manifold is fully assembled and suitable for primary and secondary heating and cooling. It is pressure-tested to 6 bar and manufactured from high-quality fiberglass-reinforced black polyamide composite. It is available in sizes from 2 to 16 groups. The primary connections (flow and return) of the manifolds with pumps are located on the top right as standard. The manifolds can also be connected on the left and/or bottom. These versions must be ordered upon request. A top-left connection is not possible. The manifold is equipped as standard with motorized thermostatic valves (M30x1.5) and adjustable flow meters.

• Thermo-manometer in the bottom beam
• Thermometer in the top bar
• 4-sided primary connection possible
• Equipped with Grundfos UPM3 Auto as standard
• Adjustable LTV valve
• Filling and drain tap
• Adjustable flow meters Taconova 0 to 300 l/h on supply
• Motorizable valve M30x1.5 per group in return
• Available with pre-adjustable Dynamic flow valves
• Double-walled insulating modules
• No condensation
• 10-year warranty on manufacturing defects
• Center distance groups 50mm
• Prepared for zoning control
• Also available in district heating version
